前言
前面寫過一篇用Python制作PPT的博客，感興趣的可以參考
用Python制作PPT
這篇是關于用Python進行數據可視化的，準備作為一個長貼，隨時更新有價值的Python可視化用例,都是網上搜集來的，與君共享,本文所有測試均基于Python3.
首先搭建環境
$pip install pyecharts -U
$pip install echarts-themes-pypkg
$pip install snapshot_selenium
$pip install echarts-countries-pypkg
$pip install echarts-cities-pypkg
$pip install echarts-china-provinces-pypkg
$pip install echarts-china-cities-pypkg
$pip install echarts-china-counties-pypkg
$pip install echarts-china-misc-pypkg
$pip install echarts-united-kingdom-pypkg
$pip install -i https://pypi.tuna.tsinghua.edu.cn/simple pyecharts
$git clone https://github.com/pyecharts/pyecharts.git
$cd pyecharts/
$pip install -r requirements.txt
$python setup.py install
一頓操作下來，該裝的不該裝的都裝上了，多裝一些包沒壞處，說不定哪天就用上了呢
實例代碼
例子1：
from pyecharts.charts import Bar
from pyecharts import options as opts
bar = (
Bar()
.add_xaxis(["chenshan", "maoyi", "longdai", "kuzi", "fengyi", "gaogenxie", "wazi"])
.add_yaxis("storeA", [114, 55, 27, 101, 125, 27, 105])
.add_yaxis("storeB", [57, 134, 137, 129, 145, 60, 49])
.set_global_opts(title_opts=opts.TitleOpts(title="sales"))
)
#bar.render_notebook()
bar.render()
render():默認將會在根目錄下生成一個 render.html 的文件，支持 path 參數，設置文件保存位置，如 render("./xx/xxx.html").
結果是以網頁的形式輸出的，執行后，在當前目錄下生成render.html，用瀏覽器打開,最好事先安裝chrome瀏覽器.
例子2：

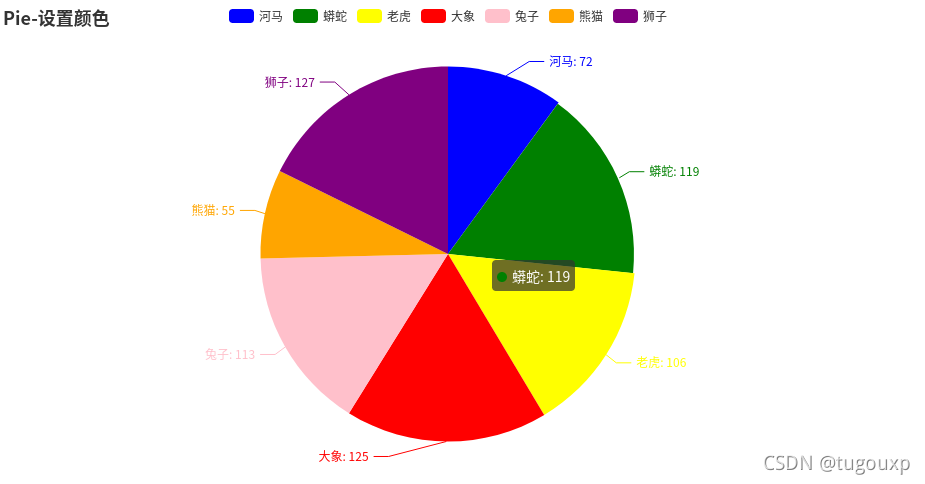

from pyecharts import options as opts
from pyecharts.charts import Pie
from pyecharts.faker import Faker
pie = (
Pie()
.add("", [list(z) for z in zip(Faker.choose(), Faker.values())])
.set_colors(["blue", "green", "yellow", "red", "pink", "orange", "purple"])
.set_global_opts(title_opts=opts.TitleOpts(title="Pie-設置顏色"))
.set_series_opts(label_opts=opts.LabelOpts(formatter=": {c}"))
)
pie.render()
例子3:

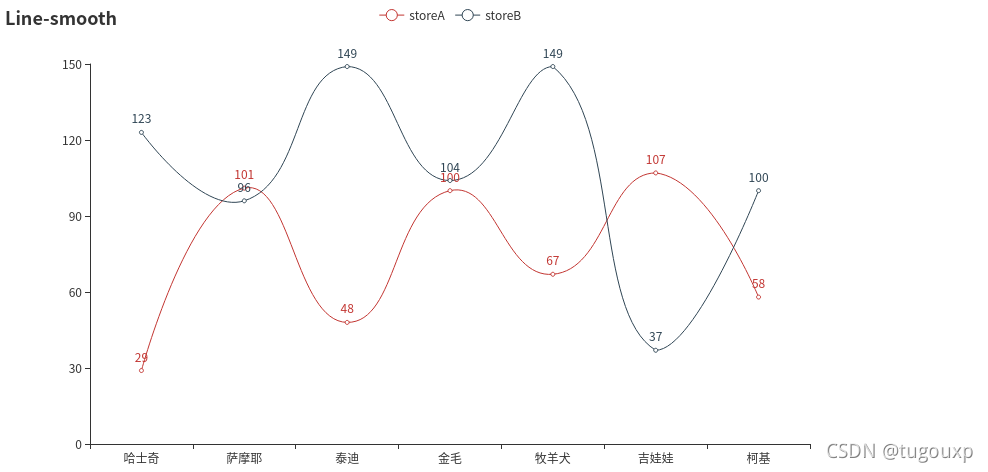

import pyecharts.options as opts
from pyecharts.charts import Line
from pyecharts.faker import Faker
c = (
Line()
.add_xaxis(Faker.choose())
.add_yaxis("storeA", Faker.values(), is_smooth=True)
.add_yaxis("storeB", Faker.values(), is_smooth=True)
.set_global_opts(title_opts=opts.TitleOpts(title="Line-smooth"))
)
c.render()

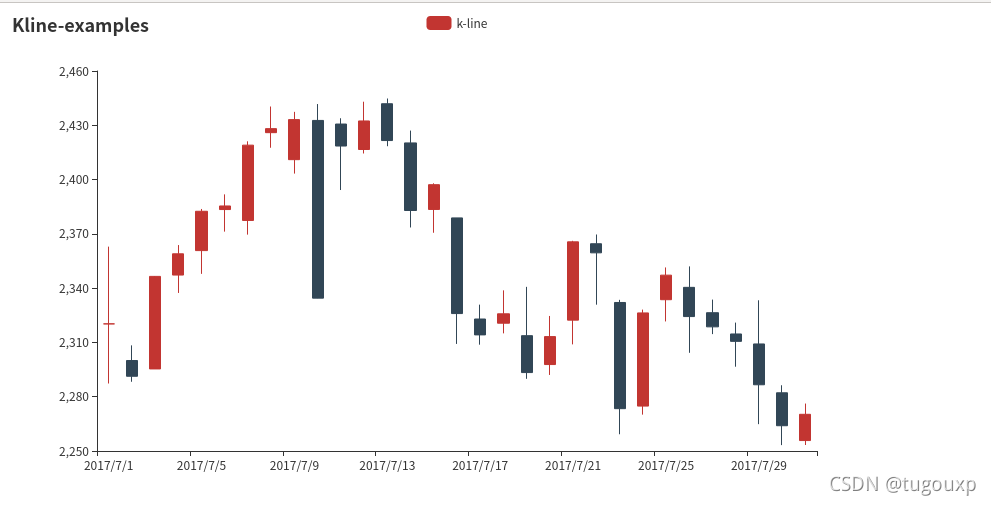

例子4:
from pyecharts import options as opts
from pyecharts.charts import Kline
data = [
[2320.26, 2320.26, 2287.3, 2362.94],
[2300, 2291.3, 2288.26, 2308.38],
[2295.35, 2346.5, 2295.35, 2345.92],
[2347.22, 2358.98, 2337.35, 2363.8],
[2360.75, 2382.48, 2347.89, 2383.76],
[2383.43, 2385.42, 2371.23, 2391.82],
[2377.41, 2419.02, 2369.57, 2421.15],
[2425.92, 2428.15, 2417.58, 2440.38],
[2411, 2433.13, 2403.3, 2437.42],
[2432.68, 2334.48, 2427.7, 2441.73],
[2430.69, 2418.53, 2394.22, 2433.89],
[2416.62, 2432.4, 2414.4, 2443.03],
[2441.91, 2421.56, 2418.43, 2444.8],
[2420.26, 2382.91, 2373.53, 2427.07],
[2383.49, 2397.18, 2370.61, 2397.94],
[2378.82, 2325.95, 2309.17, 2378.82],
[2322.94, 2314.16, 2308.76, 2330.88],
[2320.62, 2325.82, 2315.01, 2338.78],
[2313.74, 2293.34, 2289.89, 2340.71],
[2297.77, 2313.22, 2292.03, 2324.63],
[2322.32, 2365.59, 2308.92, 2366.16],
[2364.54, 2359.51, 2330.86, 2369.65],
[2332.08, 2273.4, 2259.25, 2333.54],
[2274.81, 2326.31, 2270.1, 2328.14],
[2333.61, 2347.18, 2321.6, 2351.44],
[2340.44, 2324.29, 2304.27, 2352.02],
[2326.42, 2318.61, 2314.59, 2333.67],
[2314.68, 2310.59, 2296.58, 2320.96],
[2309.16, 2286.6, 2264.83, 2333.29],
[2282.17, 2263.97, 2253.25, 2286.33],
[2255.77, 2270.28, 2253.31, 2276.22],
]
k = (
Kline()
.add_xaxis(["2017/7/{}".format(i + 1) for i in range(31)])
.add_yaxis("k-line", data)
.set_global_opts(
yaxis_opts=opts.AxisOpts(is_scale=True),
xaxis_opts=opts.AxisOpts(is_scale=True),
title_opts=opts.TitleOpts(title="Kline-examples"),
)
)
k.render()
例子5:
from pyecharts import options as opts
from pyecharts.charts import Gauge
g = (
Gauge()
.add("", [("complete", 66.6)])
.set_global_opts(title_opts=opts.TitleOpts(title="Gauge-basic examples"))
)
g.render()

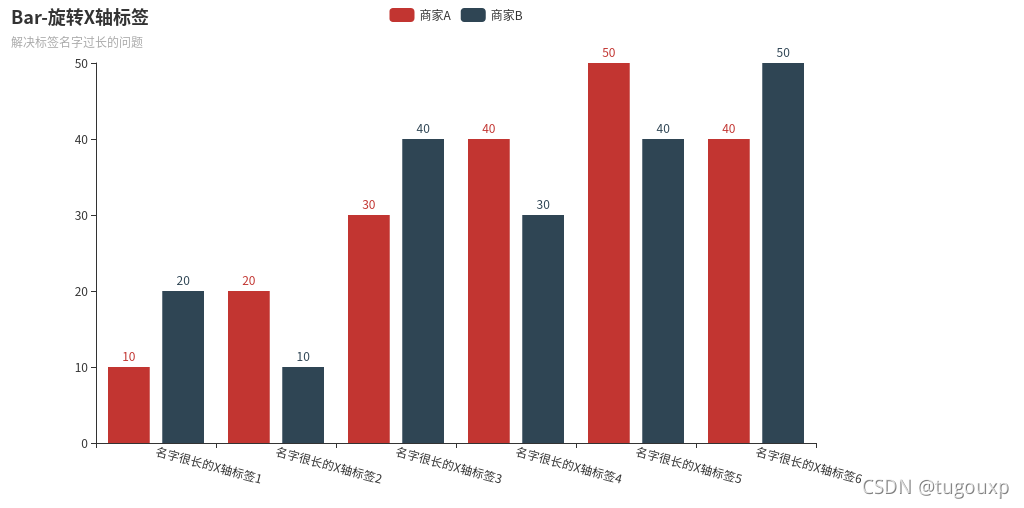

例子6:
from pyecharts import options as opts
from pyecharts.charts import Bar
(
Bar()
.add_xaxis(
[
"名字很長的X軸標簽1",
"名字很長的X軸標簽2",
"名字很長的X軸標簽3",
"名字很長的X軸標簽4",
"名字很長的X軸標簽5",
"名字很長的X軸標簽6",
]
)
.add_yaxis("商家A", [10, 20, 30, 40, 50, 40])
.add_yaxis("商家B", [20, 10, 40, 30, 40, 50])
.set_global_opts(
xaxis_opts=opts.AxisOpts(axislabel_opts=opts.LabelOpts(rotate=-15)),
title_opts=opts.TitleOpts(title="Bar-旋轉X軸標簽", subtitle="解決標簽名字過長的問題"),
)
.render()
)

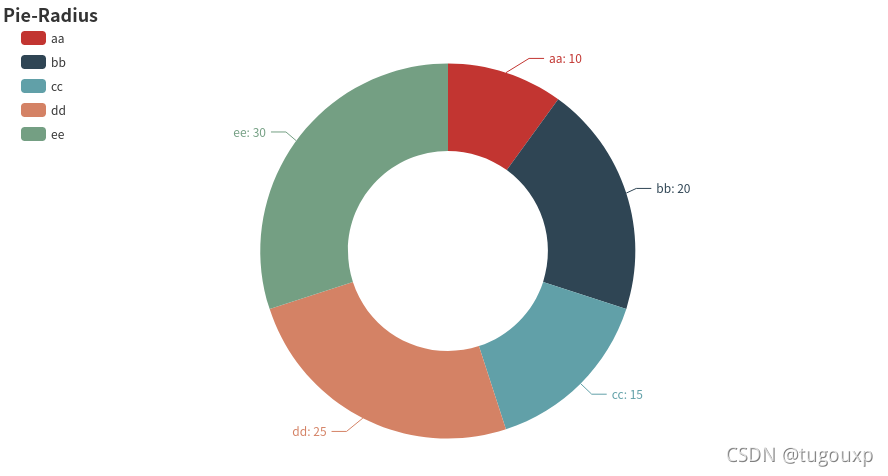

from pyecharts import options as opts
from pyecharts.faker import Faker
from pyecharts.charts import Page, Pie
l1 = ['aa','bb','cc','dd','ee']
num =[10,20,15,25,30]
c = (
Pie()
.add(
"",
[list(z) for z in zip(l1, num)],
radius=["40%", "75%"], # 圓環的粗細和大小
)
.set_global_opts(
title_opts=opts.TitleOpts(title="Pie-Radius"),
legend_opts=opts.LegendOpts(
orient="vertical", pos_top="5%", pos_left="2%" # 左面比例尺
),
)
.set_series_opts(label_opts=opts.LabelOpts(formatter=": {c}"))
)
c.render()
from pyecharts.faker import Faker
from pyecharts import options as opts
from pyecharts.charts import Page, Pie
l1 = ['aa','bb','cc','dd','ee']
num =[10,20,15,25,30]
c = (
Pie()
.add(
"",
[list(z) for z in zip(l1, num)],
radius=["40%", "55%"],
label_opts=opts.LabelOpts(
position="outside",
formatter="{a|{a}}{abg|} {hr|} {b|: }{c} {per|0w0okye%} ",
background_color="#eee",
border_color="#aaa",
border_width=1,
border_radius=4,
rich={
"a": {"color": "#999", "lineHeight": 22, "align": "center"},
"abg": {
"backgroundColor": "#e3e3e3",
"width": "100%",
"align": "right",
"height": 22,
"borderRadius": [4, 4, 0, 0],
},
"hr": {
"borderColor": "#aaa",
"width": "100%",
"borderWidth": 0.5,
"height": 0,
},
"b": {"fontSize": 16, "lineHeight": 33},
"per": {
"color": "#eee",
"backgroundColor": "#334455",
"padding": [2, 4],
"borderRadius": 2,
},
},
),
)
.set_global_opts(title_opts=opts.TitleOpts(title="Pie-富文本示例"))
)
c.render()
from pyecharts import options as opts
from pyecharts.charts import Line, Bar, Grid
bar = (
Bar()
.add_xaxis(["襯衫", "毛衣", "領帶", "褲子", "風衣", "高跟鞋", "襪子"])
.add_yaxis("商家A", [114, 55, 27, 101, 125, 27, 105])
.add_yaxis("商家B", [57, 134, 137, 129, 145, 60, 49])
.set_global_opts(title_opts=opts.TitleOpts(title="運維之路"),)
)
week_name_list = ["周一", "周二", "周三", "周四", "周五", "周六", "周日"]
high_temperature = [11, 11, 15, 13, 12, 13, 10]
low_temperature = [1, -2, 2, 5, 3, 2, 0]
line2 = (
Line(init_opts=opts.InitOpts(width="1600px", height="800px"))
.add_xaxis(xaxis_data=week_name_list)
.add_yaxis(
series_name="最高氣溫",
y_axis=high_temperature,
markpoint_opts=opts.MarkPointOpts(
data=[
opts.MarkPointItem(type_="max", name="最大值"),
opts.MarkPointItem(type_="min", name="最小值"),
]
),
markline_opts=opts.MarkLineOpts(
data=[opts.MarkLineItem(type_="average", name="平均值")]
),
)
.add_yaxis(
series_name="最低氣溫",
y_axis=low_temperature,
markpoint_opts=opts.MarkPointOpts(
data=[opts.MarkPointItem(value=-2, name="周最低", x=1, y=-1.5)]
),
markline_opts=opts.MarkLineOpts(
data=[
opts.MarkLineItem(type_="average", name="平均值"),
opts.MarkLineItem(symbol="none", x="90%", y="max"),
opts.MarkLineItem(symbol="circle", type_="max", name="最高點"),
]
),
)
.set_global_opts(
#title_opts=opts.TitleOpts(title="氣溫變化", subtitle="純屬虛構"),
tooltip_opts=opts.TooltipOpts(trigger="axis"),
toolbox_opts=opts.ToolboxOpts(is_show=True),
xaxis_opts=opts.AxisOpts(type_="category", boundary_gap=False),
#legend_opts=opts.LegendOpts(pos_left="right"),
)
#.render("temperature_change_line_chart.html")
)
# 最后的 Grid
#grid_chart = Grid(init_opts=opts.InitOpts(width="1400px", height="800px"))
grid_chart = Grid()
grid_chart.add(
bar,
grid_opts=opts.GridOpts(
pos_left="3%", pos_right="1%", height="20%"
),
)
# wr
grid_chart.add(
line2,
grid_opts=opts.GridOpts(
pos_left="3%", pos_right="1%", pos_top="40%", height="35%"
),
)
#grid_chart.render("professional_kline_chart.html")
grid_chart.render()

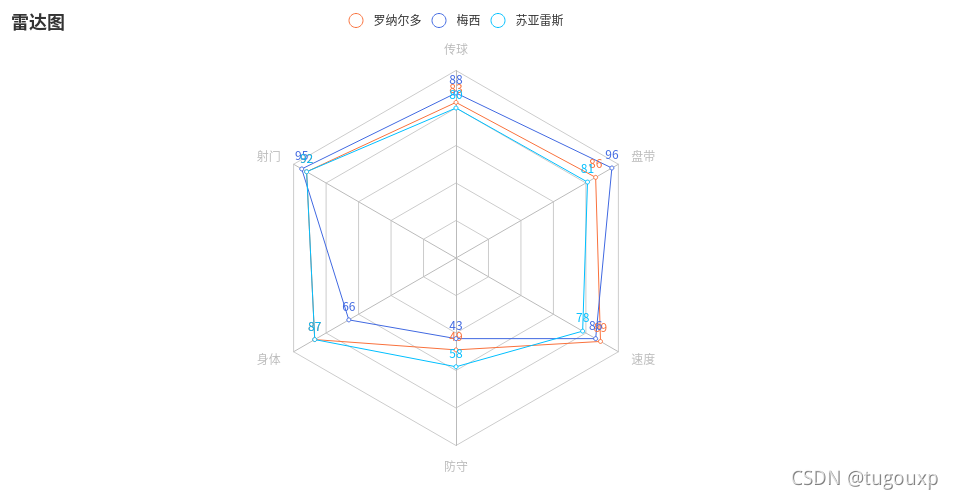

from pyecharts import options as opts
from pyecharts.charts import Radar
v1=[[83, 92, 87, 49, 89, 86]] # 數據必須為二維數組，否則會集中一個指示器顯示
v2=[[88, 95, 66, 43, 86, 96]]
v3=[[80, 92, 87, 58, 78, 81]]
radar1=(
Radar()
.add_schema(# 添加schema架構
schema=[
opts.RadarIndicatorItem(name='傳球',max_=100),# 設置指示器名稱和最大值
opts.RadarIndicatorItem(name='射門',max_=100),
opts.RadarIndicatorItem(name='身體',max_=100),
opts.RadarIndicatorItem(name='防守',max_=100),
opts.RadarIndicatorItem(name='速度',max_=100),
opts.RadarIndicatorItem(name='盤帶',max_=100),
]
)
.add('羅納爾多',v1,color="#f9713c") # 添加一條數據，參數1為數據名，參數2為數據，參數3為顏色
.add('梅西',v2,color="#4169E1")
.add('蘇亞雷斯',v3,color="#00BFFF")
.set_global_opts(title_opts=opts.TitleOpts(title='雷達圖'),)
)
radar1.render()

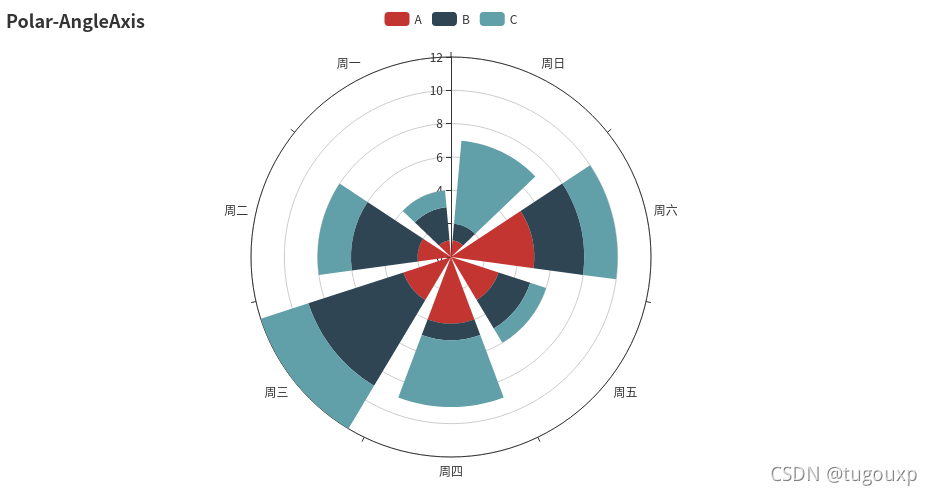

import math
import random
from pyecharts.faker import Faker
from pyecharts import options as opts
from pyecharts.charts import Page, Polar
c = (
Polar()
.add_schema(
angleaxis_opts=opts.AngleAxisOpts(data=Faker.week, type_="category")
)
.add("A", [1, 2, 3, 4, 3, 5, 1], type_="bar", stack="stack0")
.add("B", [2, 4, 6, 1, 2, 3, 1], type_="bar", stack="stack0")
.add("C", [1, 2, 3, 4, 1, 2, 5], type_="bar", stack="stack0")
.set_global_opts(title_opts=opts.TitleOpts(title="Polar-AngleAxis"))
)
c.render()
import math
import random
from pyecharts.faker import Faker
from pyecharts import options as opts
from pyecharts.charts import Page, Polar
data = [(i, random.randint(1, 100)) for i in range(10)]

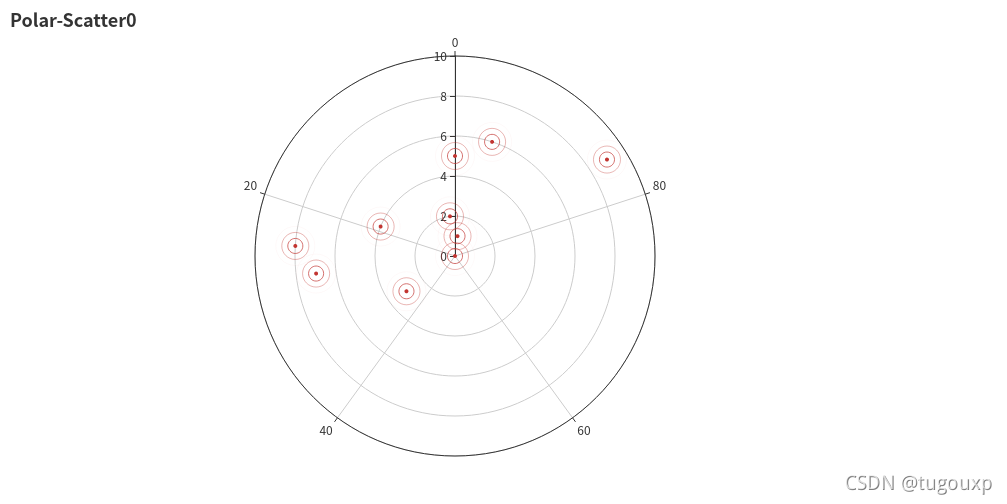

c = (
Polar()
.add("", data, type_="effectScatter",
effect_opts=opts.EffectOpts(scale=10, period=5),
label_opts=opts.LabelOpts(is_show=False))
# type默認為"line",
# "effectScatter"，scatter,bar
.set_global_opts(title_opts=opts.TitleOpts(title="Polar-Scatter0"))
)
c.render()
import math
import random
from pyecharts.faker import Faker
from pyecharts import options as opts
from pyecharts.charts import Page, Polar

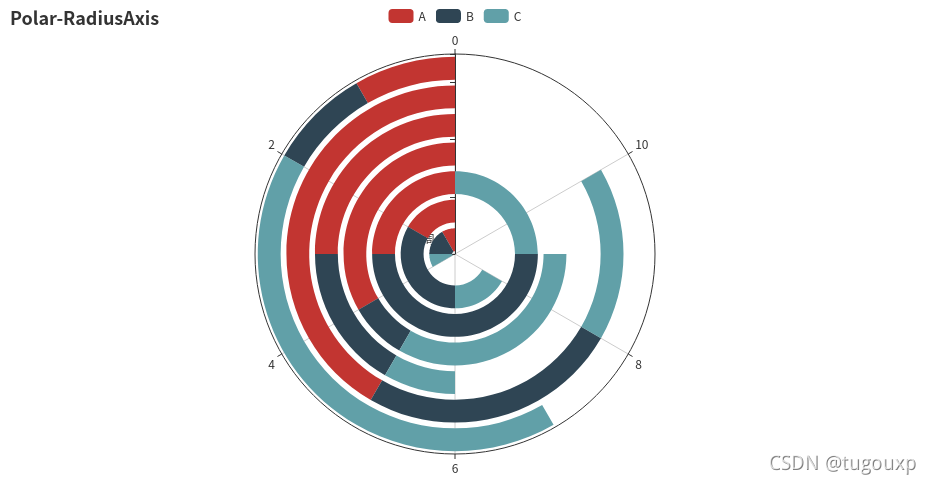

c = (
Polar()
.add_schema(
radiusaxis_opts=opts.RadiusAxisOpts(data=Faker.week, type_="category")
)
.add("A", [1, 2, 3, 4, 3, 5, 1], type_="bar", stack="stack0")
.add("B", [2, 4, 6, 1, 2, 3, 1], type_="bar", stack="stack0")
.add("C", [1, 2, 3, 4, 1, 2, 5], type_="bar", stack="stack0")
.set_global_opts(title_opts=opts.TitleOpts(title="Polar-RadiusAxis"))
)
c.render()

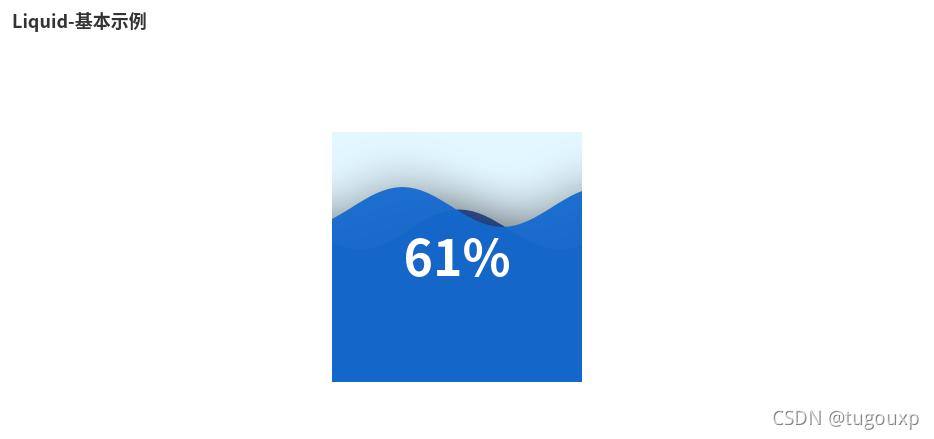

from pyecharts import options as opts
from pyecharts.charts import Liquid, Page
from pyecharts.globals import SymbolType
c = (
Liquid()
.add("lq", [0.61, 0.7],shape='rect',is_outline_show=False)
# 水球外形，有' circle', 'rect', 'roundRect', 'triangle', 'diamond', 'pin', 'arrow' 可選。
# 默認 'circle'。也可以為自定義的 SVG 路徑。
#is_outline_show設置邊框
.set_global_opts(title_opts=opts.TitleOpts(title="Liquid-基本示例"))
)
c.render()
散點圖：
from pyecharts.charts import Scatter
import pyecharts.options as opts
female_height = [161.2,167.5,159.5,157,155.8,170,159.1,166,176.2,160.2,172.5,170.9,172.9,153.4,160,147.2,168.2,175,157,167.6,159.5,175,166.8,176.5,170.2,]
female_weight = [51.6,59,49.2,63,53.6,59,47.6,69.8,66.8,75.2,55.2,54.2,62.5,42,50,49.8,49.2,73.2,47.8,68.8,50.6,82.5,57.2,87.8,72.8,54.5,]
male_height = [174 ,175.3 ,193.5 ,186.5 ,187.2 ,181.5 ,184 ,184.5 ,175 ,184 ,180 ,177.8 ,192 ,176 ,174 ,184 ,192.7 ,171.5 ,173 ,176 ,176 ,180.5 ,172.7 ,176 ,173.5 ,178 ,]
male_weight = [65.6 ,71.8 ,80.7 ,72.6 ,78.8 ,74.8 ,86.4 ,78.4 ,62 ,81.6 ,76.6 ,83.6 ,90 ,74.6 ,71 ,79.6 ,93.8 ,70 ,72.4 ,85.9 ,78.8 ,77.8 ,66.2 ,86.4 ,81.8 ,89.6 ,]
scatter = Scatter()
scatter.add_xaxis(female_height)
scatter.add_xaxis(male_height)
scatter.add_yaxis("female", female_weight, symbol_size=15) #散點大小
scatter.add_yaxis("male", male_weight, symbol_size=15) #散點大小
scatter.set_global_opts(title_opts=opts.TitleOpts(title="身高體重分布"),
xaxis_opts=opts.AxisOpts(
type_ = "value", # 設置x軸為數值軸
splitline_opts=opts.SplitLineOpts(is_show = True)), # x軸分割線
yaxis_opts=opts.AxisOpts(splitline_opts=opts.SplitLineOpts(is_show=True))# y軸分割線
)
scatter.set_series_opts(label_opts=opts.LabelOpts(is_show=False))
scatter.render("./html/scatter_base.html")
總結
到此這篇關于利用Python進行數據可視化的文章就介紹到這了,更多相關Python數據可視化內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
您可能感興趣的文章:- python數據可視化之matplotlib.pyplot基礎以及折線圖
- 淺談哪個Python庫才最適合做數據可視化
- python數據可視化plt庫實例詳解
- 學會Python數據可視化必須嘗試這7個庫
- Python中seaborn庫之countplot的數據可視化使用
- python實現股票歷史數據可視化分析案例
- Python數據可視化之基于pyecharts實現的地理圖表的繪制
- Python爬蟲實戰之爬取京東商品數據并實實現數據可視化
- Python數據可視化之用Matplotlib繪制常用圖形
- Python數據可視化之繪制柱狀圖和條形圖
- python用pyecharts實現地圖數據可視化
- python數據可視化 – 利用Bokeh和Bottle.py在網頁上展示你的數據
